Wire Braided Hose

Wire Braided Hose
Wire Braided Hose
Product Code : 13
Product Description

SR-1 / SR-1 AT
(Equivalent to SAE 100 R1/R1 AT)

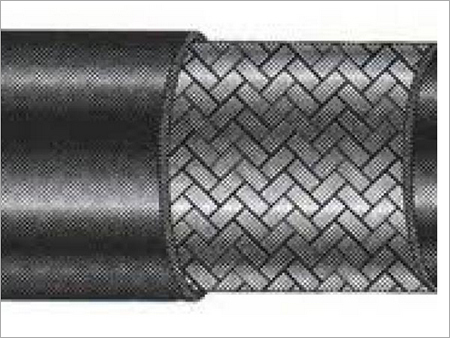

SINGLE WIRE BRAIDED HOSE

APPLICATION: Medium/high pressure hydraulic oil lines, Fuel oil, Gasoline, Water.

CONSTRUCTION:

  • Tube: Black, oil resistant synthetic rubber.
  • Reinforcement: One ply braided high tinsel steel wire.
  • Cover: Oil, weather & abrasion resistant synthetic rubber.

TEMPREATURE:

  • -40 Deg. F to +200 Deg. F,
  • -40 Deg. C to + 93 Deg. C,
  • Occasional use upto 120 Deg. C

Technical Specification :

Hose Size

Working
Pressure

Min. Bend
Radius

0

SR-1

SR-1 AT

0

0

ID

OD

OD

PSI KG/CM2

Inches

mm

Inch

mm

Inch

mm

Inch

mm

0

0

1/4

6.4

0.594

15.1

0.557

14.1

2750

193

4.0

102

5/16

7.9

0.688

17.5

0.619

15.7

2500

175

4.5

114

3/8

9.5

0.781

19.8

0.713

18.1

2250

158

5.0

127

1/2

12.7

0.906

23.0

0.846

21.5

2000

140

7.0

178

5/8

15.9

1.031

26.2

0.971

24.7

1500

105

8.0

203

3/4

19.0

1.187

30.1

1.127

28.6

1250

87

9.5

241

1

25.4

1.500

38.1

1.44

36.6

1000

70

12.0

305

1 1/4

31.8

1.813

46.0

1.766

44.8

625

44

16.5

419

1 1/2

38.1

2.063

52.4

2.047

52.0

500

35

20.0

508

2

50.8

2.625

66.7

2.594

65.9

375

26

25.0

635

Other Details :

Construction

Temperature

Tube: Black, oil resistant synthetic rubber.

-40 Deg. F to +200 Deg. F,

Reinforcement: One ply braided high tinsel steel wire.

-40 Deg. C to + 93 Deg. C,

Cover: Oil, weather & abrasion resistant synthetic rubber.

Occasional use up to 120 Deg. C
