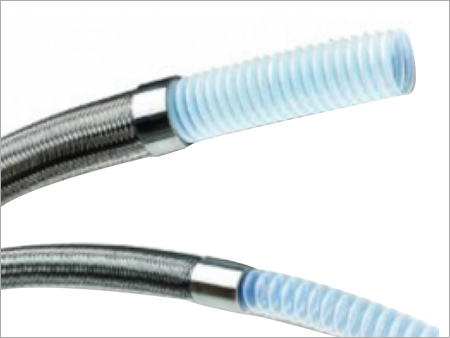

PTFE Hose

PTFE Hose
PTFE Hose
Product Code : 22
Product Description

In a short span of time, we have become a genuine manufacturer, and supplier of a wide gamut of PTFE Hose. These hoses are designed and manufacture keeping in mind all the set quality norms of the industry. Our offered hoses are available in a choice of sizes to suit the different requirements of the customers. Available at industry leading price, our range of PTFE Hose is well acclaimed for features such as high tensile strength, leakage proof, temperature resistance and so on.

Features:

  • PTFE synterized resin smooth bore tube; the low thickness assures medium permeability values.
  • It is very flexible and has a good resistance to impulse stresses.
  • It has dielectricals and fire resistance properties.

Applications:

  • Aggressive gases having a medium permeability value.
  • Hydraulic.
  • Pharmaceutics.
  • Steam for ironing & cleaning.
  • General purpose applications.

Reinforcement :

  • STD: One stainless braid AISI 304.

Working Temperatures :

  • -60 +260 Deg. C (Static -200 Deg. C).

Technical Specification :

DN

WALL
THK

INT.
DIA

EXT.
DIA

Pressure AT 20Deg.
KG / CM2

Min. Bend
Radius

mm

INCH

mm

mm

mm

Working

Min. Burst

mm

5

3/16

0.7

5

7.6

203

810

55

6

1/4

0.7

6.35

8.8

169

675

75

8

5/16

0.7

8

11

144

576

100

9

3/8

0.7

9.5

12.1

135

540

110

10

13/32

0.7

1035

13

126

504

120

13

1/2

0.7

12.7

15.7

113

450

125

16

5/8

0.9

16

19.3

104

414

150

20

3/4

0.9

19

22.2

81

324

200

22

7/8

0.9

22.2

26.1

68

270

240

25

1

1

25.4

29.1

63

252

300

29

1 1/8

1

28.5

32.6

56

225

330
